Best Hot Water Cerculation Pump

Product Description

Specification:

• Voltage: 120 volts
• Item Weight: 8.5 pounds
• Overall Dimension: 6.2 x 6 x 5 inches
• Size: Full
• Color: Blue
• Material: Case
• Warranty: 1 Year

Never wait for hot water again! The Watts Hot Water Recirculating Pump provides hot water at every faucet or shower when needed, eliminating wasted water. It is easy to install on any water system and requires no additional piping. The unique design of the pump ensures quiet, maintenance-free operation. The system includes a built-in 24 hour, a dual setting programmable timer to activate the pump only when needed. System that provides instant hot water to every faucet or shower in a home when you need it. Stop throwing money down the drain and waiting for your hot water.

From the Manufacturer

The Watts Premier hot water recirculation pump puts hot water at every tap when you want it. Saves up to 15,000 gallons per year. The pump brings convenience and savings to your home, giving you hot water instantly at every faucet, when you need it. This unique product is easy to install and not only provides you with the convenience of hot water when you need it, but saves an average of over 11,000 gallons per year. *May not work with a tankless water heater.

Product Description

The auto circ pump is installed under the sink or faucet farthest from the water heater – where hot water usually takes the longest amount of time to arrive. A built-in temperature sensor automatically turns the autocirc pump on when the water temperature in the hot water supply line cools down to 85º F. This cool water in the hot water supply line is then pumped into the cold water line and back into the water heater. The autocirc pump turns off automatically when the hot water supply line to the faucet reaches a temperature of 95º F, ensuring the instant availability of shower warm water with maximum temperature hot water only seconds behind. When the pump is automatically turned off by the built-in thermostat, an auto closure device prevents hot or cold water from mixing in either supply line. Another beneficial feature is that hot water will also be instantly available at all other faucets in the supply line between the water heater and the faucet where the autocirc pump is installed. Does not require a return line. Requires only 14 watts of power. Packaged complete with a 6 ft. long power cord. Requires only one pump and one installation for all fixtures on the hot water plumbing line. Has built-in fixed thermostat. Has a built-in 24 hour timer which allows the selection of system operating periods to suit family usage. Saves the average family of four up to 17,000 gallons of water annually.. Long lasting, silent operation. Saves energy, money, water and pays for itself in a short period of time (see additional images for energy saving chart). No shaft, no seal. Maintenance free without blockage. Single bearing design. Resistant to scale build up.

From the Manufacturer

The Laing Pump is installed under the sink or faucet farthest from the water heater – where hot water usually takes the longest amount of time to arrive. A built-in temperature sensor automatically turns the pump on when the water temperature in the hot water supply line cools down to 77º F. This cool water in the hot water supply line is then pumped into the cold water line and back into the water heater. The Laing pump turns off automatically when the hot water supply line to the faucet reaches 91º F, ensuring the instant availability of shower warm water with maximum temperature hot water only seconds behind. When the pump is automatically turned off by the built-in thermostat, an auto closure device prevents hot or cold water from mixing in either supply line.The product should be installed by a licensed professional.

Product Details
Model: RS15-6
Rated Power: 93/67/46W
Outlet: 3/4 inch
Max Flow: 36/29/20L/min
Rated Head: 20/16/13m
Volt/Freq: 110-120V/60Hz

Applications
Used in Suitable for city buildings, suburban villas, houses, water and pressurized with industrial equipment, air conditioning, boilers, solar circulating water, hot water circulating warm and so on

Advantages
1.High efficiency, high flow, leak-tightness, low consumption
2.No noise environmental protection, ease of installation
3.No leakage, low noise, environmental protection, aesthetics, ease of installation and so on
4.Built-in high sensitive electronic sensors with three-speed control

Performance Datas
1) Suitable for medium: Hot water and ethanol maximum ratio of 1:1
2) Performance: Liquid temperature range: 0℉ – +212℉Maximum working pressure 10bar
3) Ambient temperature: not higher than 40
4) Voltage: 110-120V(±10%) ,Frequency: 60Hz.
5) Motor: Protection class IP44 Insulation class F
6) Material: Stainless Steel, PP, ceramics
7) Mounting position: Shaft horizontal mounting
8) Pump settings: Single-phase pipeline pump 3 files manually controlled single-phase motor is not overloaded casting pump length 130 mm

It’s perfect for the home solar water heating systems or other circulation pump application.
Brushless Motor,Super long working life,low consumption and low noise

Power source: DC 12V
Rated current: 0.7A
Low noise: 30db at 1 metre
Service life: 30000 hours up
Inlet/Outlet: 1/2″ male thead. Fit both 1/2″ NPT and BSP female thead. We’ve tested. w/ two brass coupler

Circulation pump is non-self-priming pump (0 Suction Height).
Max Flow Rate: 8L/Min(2.1GPM)
Max Water Head: 3 metre(9.8ft)
Max system pressure: 10Bar(145PSI). This doesn’t mean the pump produces 145PSI. It means the pump can be connected to the system less than 145PSI pressure.
Max circulating water temperature: 100°C/212°F. Can’t be immersed in hot water exceeding 50°C/122℉

Please note: If you use this pump for circulating wort it should be cleaned out after using it.

Item included:
1x DC 12V Solar Hot Water Circulation Pump
1x AC 110V- 240V to DC 12V 2A Power Supply Adapter

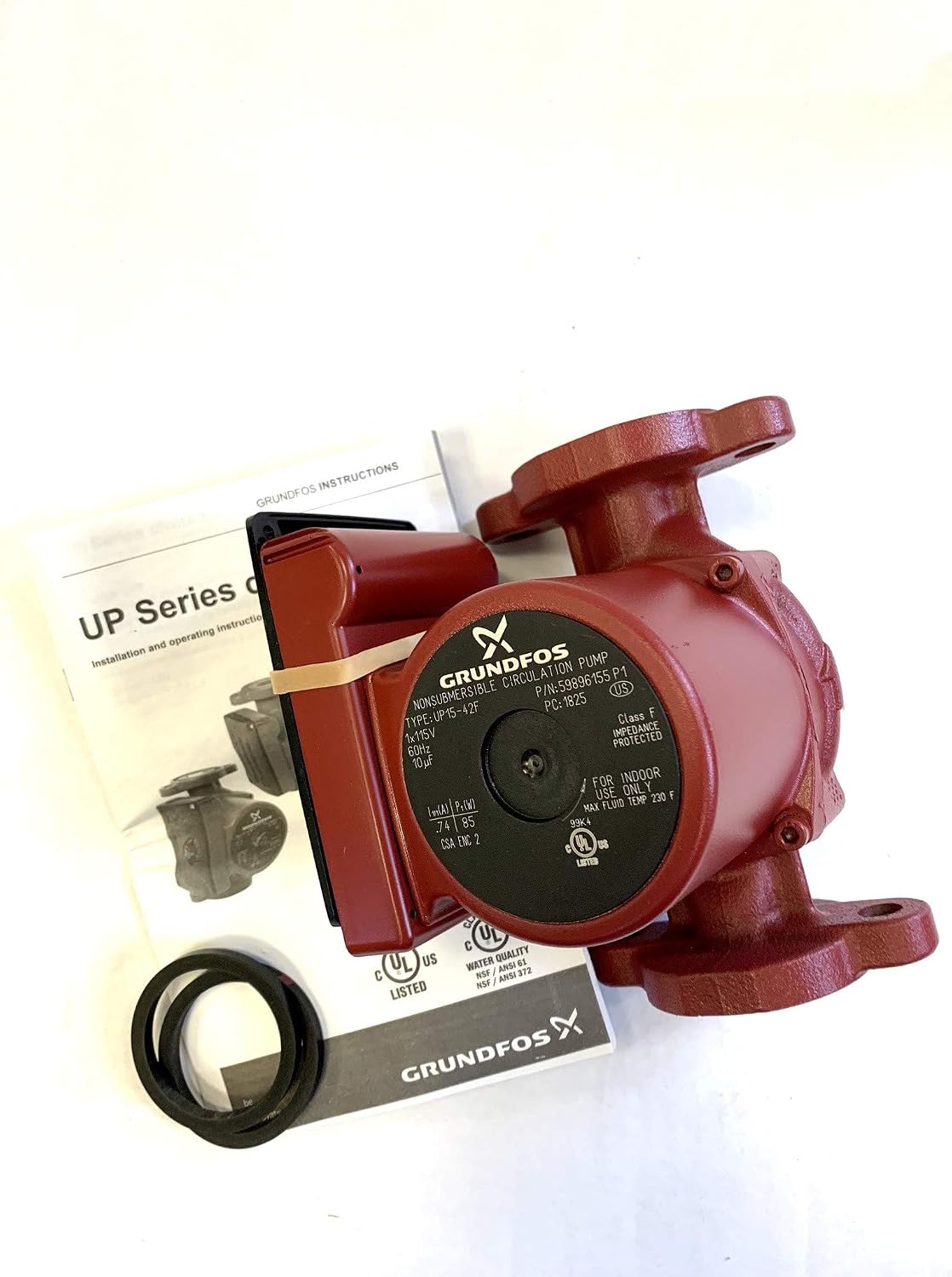

Grundfos UPS15-58FC Circulator Pump Red

Grundfos UP15-42F Circulator Pump (59896155) is a 1/25HP cast iron circulator pump designed for use in closed loop heating applications, such as radiant heating, baseboards, fan coils, etc. Features include a built-in motor protection for longer life and better performance. It is suitable for a wide range of applications, including radiant heating, hydronic heating, fan coil heating, solar and other system types. Grundfos circulation pump has a whisper-quiet operation for sound sensitive installations. Box includes (2) Gaskets (O-rings).

Conclusion

By our suggestions above, we hope that you can found hot water cerculation pump for you.Please don’t forget to share your experience by comment in this post. Thank you!
